Magnum Cluster API drivers

Warning

This documentation is relevant only for OpenStack-Ansible 2026.1 (Gazpacho) or later. An earlier version was provided in the openstack-ansible-ops documentation

About

With deprecation of Heat driver during 2025.1 (Antelope) release, preliminary Magnum deployment is assumed to be performed through one of the third-party drivers.

At the moment there are at least 2 well-known Kubernetes Cluster API drivers for the Magnum. This page describes the Vexxhost Magnum Cluster API driver as well as Azimuth (HELM) Magnum Cluster driver.

Presence of a compatible “control plane” kubernetes cluster, which will be responsible for spawning tenant clusters, is a pre-requirement for both of these drivers. Such cluster is being prepared using adriacloud.kubernetes collection during openstack.osa.setup_infrastructure playbook.

Same “control plane” cluster can be used by both of the drivers, so we consider such kubernetes infrastructure as “shared” between drivers.

The following architectural features are present and are true for both drivers:

  • The control plane k8s cluster is an integral part of the OpenStack-Ansible deployment, and forms part of the foundational components alongside MariaDB and RabbitMQ.

  • The control plane k8s cluster is deployed on the infra hosts and integrated with the HAProxy load balancer and OpenStack internal API endpoint, and not exposed outside the deployment

  • SSL is supported between all components and configuration is possible to support different certificate authorities on the internal and external load balancer endpoints.

  • Control plane traffic can stay entirely within the management network if required.

  • It is possible to do a completely offline install for airgapped environments

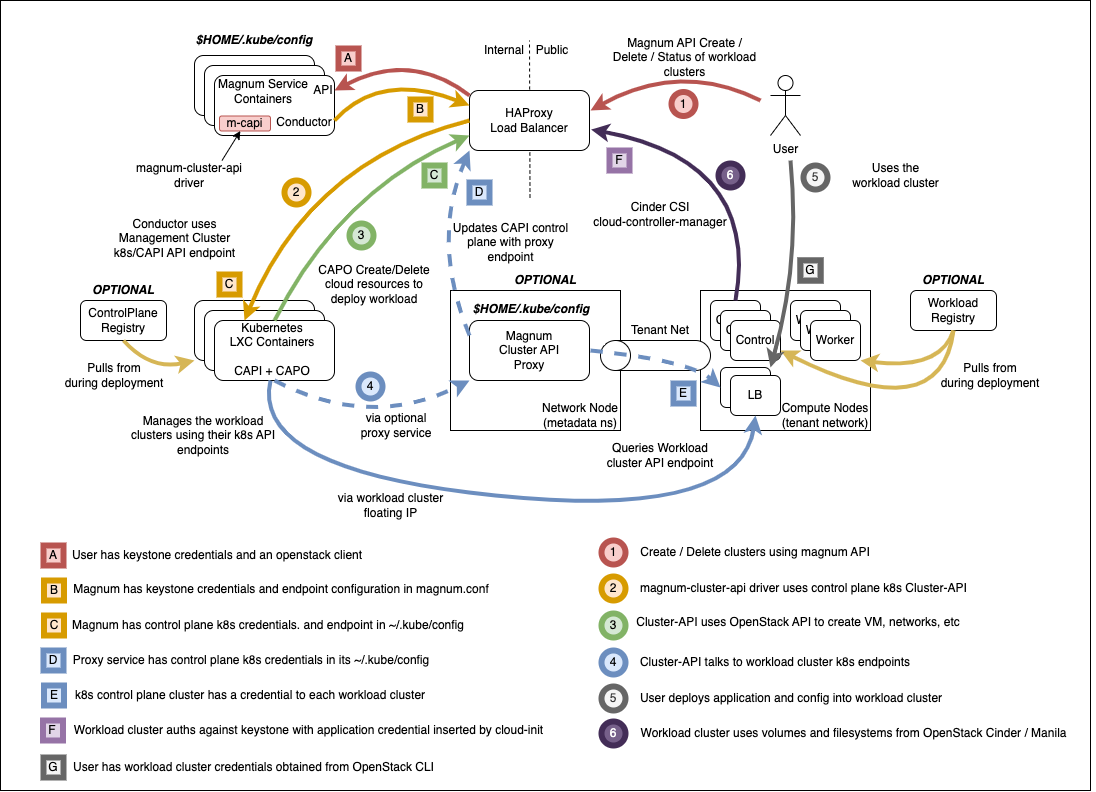

Highlevel overview of the Magnum infrastructure these playbooks will build and operate against.

OSA Magnum Cluster API Architecture

Pre-requisites

  • An existing OpenStack-Ansible deployment

  • Control plane using LXC containers, bare metal deployment should work, but is not tested

  • Core OpenStack services plus Octavia

Control Plane Kubernetes Cluster

Adding Kubernetes cluster to inventory

Alike to any other service, k8s cluster should be added to the inventory first.

For that, define the physical hosts that will host the control plane k8s cluster in /etc/openstack_deploy/conf.d/k8s.yml. This example is for an all-in-one deployment and should be adjusted to match a real deployment with multiple hosts if high availability is required.

---

cluster_api_hosts:
  aio1:
    ip: 172.29.236.100
    management_ip: 172.29.236.100

Kubernetes cluster configuration

You can control various parameters of the deployment by defining overrides for the control plane of the k8s cluster in /etc/openstack_deploy/group_vars/k8s_all/main.yml.

---
# Pick a range of addresses for cilium that do not collide with anything else
cilium_ipv4_cidr: 172.29.200.0/22

# Set a clusterctl version. Supported list can be found in defaults:
# https://github.com/adriacloud/ansible-collection-kubernetes/blob/main/roles/clusterctl/defaults/main.yml
clusterctl_version: 1.12.3
cluster_api_version: 1.12.3
cluster_api_infrastructure_provider: openstack
cluster_api_infrastructure_version: 0.14.1

# Define k8s version for the control cluster
kubernetes_version: 1.35.2

# Enable periodic cluster API state collection (note: this is not a guaranteed functional backup)
# See https://cluster-api.sigs.k8s.io/clusterctl/commands/move
cluster_api_backups_enabled: true

Deploying Kubernetes cluster

In order to deploy the Kubernetes cluster to control plane, run following playbooks:

openstack-ansible openstack.osa.containers_lxc_create --limit k8s_all,cluster_api_hosts
openstack-ansible openstack.osa.k8s

Configuration of Cluster API drivers

Vexxhost Cluster API driver

The magnum-cluster-api driver for magnum can be found here: https://github.com/vexxhost/magnum-cluster-api

Documentation for the Vexxhost magnum-cluster-api driver is here: https://vexxhost.github.io/magnum-cluster-api/

You might need to define a series overrides for the magnum service itself and the driver in particular. For that, you may create /etc/openstack_deploy/group_vars/magnum_all/main.yml and place required overrides in there.

Attention must be given to the SSL configuration. Users and workload clusters will interact with the external endpoint and must trust the SSL certificate. The magnum service and cluster-api can be configured to interact with either the external or internal endpoint and must trust the SSL certificiate. Depending on the environment, these may be derived from different certificate authorities.

---
magnum_k8s_driver: "vexxhost"

magnum_capi_vexxhost_git_install_branch: v0.36.6
magnum_capi_vexxhost_git_repo: "{{ openstack_github_base_url | default('https://github.com') ~ '/vexxhost/magnum-cluster-api' }}"

Azimuth (HELM) Cluster API driver

The Azimuth (HELM) Cluster API driver is developed under the OpenStack governance, and the repository can be found here: https://opendev.org/openstack/magnum-capi-helm

Please, check project’s documentation for more details on the driver design and capabilities.

However, the driver is heavily depending on HELM charts, which are being developed by Azimuth Cloud. The driver is depending on following HELM charts:

There are several variables available for override with the driver. You can place options to the /etc/openstack_deploy/group_vars/magnum_all/main.yml file. A sample configuration file below:

---
magnum_k8s_driver: "azimuth"

magnum_capi_azimuth_git_install_branch: master
magnum_capi_azimuth_git_repo: "{{ openstack_opendev_base_url | default('https://opendev.org') ~ '/openstack/magnum-capi-helm' }}"

magnum_capi_azimuth_helm_base_url: https://azimuth-cloud.github.io
magnum_capi_azimuth_helm_addon_provider_version: 0.10.4
magnum_capi_azimuth_helm_charts_version: 0.22.0

magnum_config_overrides:
  cinder:
    default_docker_volume_type: "{{ cinder_default_volume_type }}"
    default_etcd_volume_type: "{{ cinder_default_volume_type }}"
    default_boot_volume_type: "{{ cinder_default_volume_type }}"
    default_boot_volume_size: 30
  docker_registry:
    swift_region: "{{ magnum_service_region }}"
  capi_helm:
    csi_cinder_default_volume_type: "{{ cinder_default_volume_type }}"
    default_helm_chart_version: "{{ magnum_capi_azimuth_helm_charts_version }}"

Run the deployment

Note

Please check Post-deployment for details on how to upload required images and cluster templates before proceeding with deployment.

Deploy the magnum with a Cluster API driver

openstack-ansible openstack.osa.magnum

Optional Components

Use of magnum-cluster-api-proxy with Vexxhost driver

Note

The Magnum Cluster API Proxy service has been designed and tested for the Vexxhost CAPI driver.

As the control plane k8s cluster need to access a k8s control plane of tenant cluster for it’s further configuration, the only way to do it out of the box is through the public network (Floating IP). This means, that API of the k8s control plane must be globally reachable, which posses a security threat to such tenant clusters.

On order to solve the issue and provide access for the control plane k8s cluster to tenant clusters inside their internal networks a proxy service is introduced.

Proxy service must be spawned on hosts, where Neutron Metadata agents are spawned. For LXB/OVS these are members of neutron-agent_hosts, while for OVN the service should be installed to all compute_hosts (or neutron_ovn_controller).

The service will configure own HAProxy instance and create backends for managed k8s clusters to point inside corresponding network namespaces. Service does not spawn own namespaces, but leverages already existing metadata namespaces to get connection to the Load Balancer inside the project network.

Configuration of the service is relatively trivial:

# Define a group of hosts where to install the service.
# OVN: compute_hosts / neutron_ovn_controller
# OVS/LXB: neutron_metadata_agent
magnum_capi_vexxhost_proxy_hosts: compute_hosts
# Define address and port HAProxy instance to listen on
magnum_capi_vexxhost_proxy_environment:
   PROXY_BIND: "{{ management_address }}"
   PROXY_PORT: 44355

Also, in case of proxy service deployment, ensure that variable magnum_capi_vexxhost_git_install_branch is defined for the magnum_capi_vexxhost_proxy_hosts as well, or align value of the magnum_capi_vexxhost_git_install_branch with magnum_capi_vexxhost_proxy_install_branch to avoid conflicts caused by different versions of driver used.

Once configuration is complete, you can run the playbook:

openstack-ansible openstack.osa.magnum_capi_proxy

Troubleshooting

Local testing

An OpenStack-Ansible All-in-One configured with Magnum and Octavia is capable of running a functioning magnum-cluster-api deployment.

Sufficient memory should be available beyond the minimum 8G usually required for an All-in-One. A multi-node workload cluster may require nova to boot several Ubuntu images in addition to an Octavia load balancer instance. 64G would be an appropriate amount of system RAM.

There also must be sufficient disk space in /var/lib/nova/instances to support the required number of instances - the normal minimum of 60G required for an All-in-One deployment will be insufficient, 500G would be plenty.
